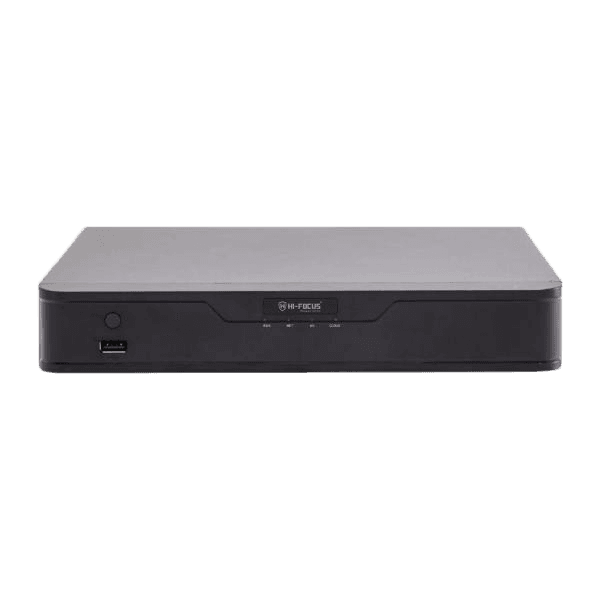

8 CHANNEL 1 SATA NETWORK VIDEO RECORDER
HD-NVR-5116S
Product Features
- 8-Channel input
- Third-party IP cameras supported with ONVIF conformance
- Support 1-CH HDMI, 1-CH VGA, HDMI at up to
- 4K(3840x2160) resolution
- Up to 8 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- 1 SATA HDD up to 8 TB
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
Specifications
- SYSTEM
- VIDEO
- AUDIO
- PLAYBACK
- HARD DISK
- SMART
- EXTERNAL INTERFACE
- GENERAL
SYSTEM
Compression
Smart H.265/H.264
VIDEO
Network Access Bandwidth
80 Mbps Incoming/ 80 Mbps Outgoing
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/960p/ 720p/D1/2CIF/CIF
IP Video Input
8-ch
HDMI/VGA Output
HDMI:4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA:1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Protocols
HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Server, P2P
AUDIO
Audio Output
1-ch, RCA
Two-way Audio Input
1-ch, RCA
PLAYBACK
Simultaneous Playback
8-ch
Live View Display
8MP/6MP/5MP/4MP/3MP/1080p/960p/ 720p/D1/2CIF/CIF
Remote Users
128
HARD DISK
SATA
1 SATA interfaces
Capacity
up to 8TB for each disk
SMART
VCA Detection
Intrusion detection, Cross line detection, Motion detection,
EXTERNAL INTERFACE
Network Interface
1 RJ-45 10M/100M self-adaptive Ethernet Interfaces
USB Interface
Rear panel：2 x USB2.0, Front panel：1XUSB2.0
Alarm In
4-ch
Alarm Out
1-ch
GENERAL
Power Supply
12V DC Power Consumption: ≤ 8W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F) Humidity ≤ 10% ~90% RH (non-condensing)
