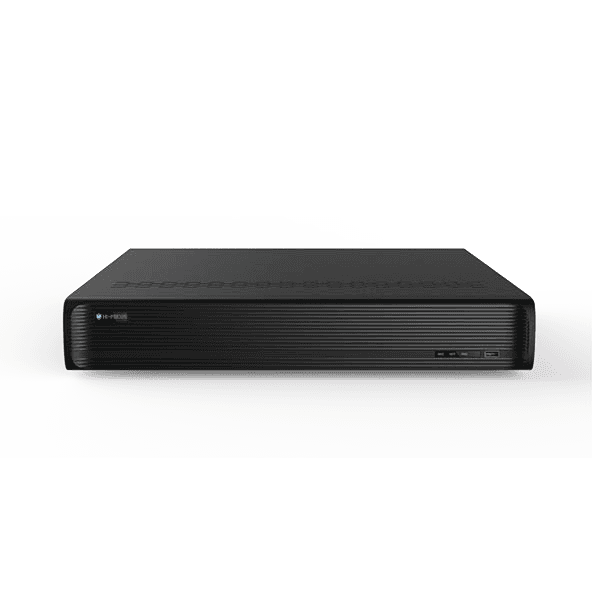

80 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-5648H8-4K
Product Features
- 80CH Support 12MP/ 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse,4K Output True
- High Resolution Display
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback :16 CH simultaneous playback
- Search : time slice, time, event ( manual, sensor, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex : POS information overlay on live view / playback preview, record, playback, backup and remote access]
- Support RAID0, 1, 5, 6, 10
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device,
- Multi-user online simultaneously, Authorization management, log view and device status view.
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- DECODING CAPABILITY
- SMART
- NETWORK
- MOBILE DEVICE
- STORAGE
- BACK UP
- INTERFACE
- GENERAL
SYSTEM
Compression
H.265 Standard
OS
Embedded Linux
Main Processing Chip
ARM Cortex A17
VIDEO
Incoming Bandwidth
640Mbps
Outgoing Bandwidth
640Mbps
Input Resolution
12MP/8MP/6MP/5MP/4MP/3MP/ 720P/960H/D1/CIF
Network Access
80 CH IPC Input
Output
HDMI×1: 3840×2160/1920×1080/1280×1024 1920×1080/1280×1024 HDMI×2: 1920×1080/1280×1024/ 1024 × 768 HDMI×3: 1920×1080/1280×1024/ 1024 × 768 HDMI×4: 1920×1080/1280×1024/ 1024 × 768 VGA×1:1920×1080/1280×1024
AUDIO
Input
80 CH IPC audio input
2-way Audio
RCA ×1
Local Output
RCA ×1
RECORD
Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF
Frame Rate
25fps/30fps (PAL/NTSC)
Bite Stream
32Kbps-20Mbps
Image Quality
5 Level
Mode
Manual/timed/motion/sensor/POS/AI recording
PLAYBACK
Simultaneous Playback
Max 16 CH
Search
Time Slice/Time/Event/Tag Search
Smart Search
Highlighted Color to Display the Camera record in a Certain Period of Time, Different Color refer to Different Record Events.
Function
Play, Pause, FF ,FB, Digital Zoom, etc
DECODING CAPABILITY
Live/Playback
1CH 12MP/ 4CH 5MP/9CH 720P/16CH 720P
SMART
VCA Detection
Face detection, LPR, Intrusion detection, Cross line detection Audio detection, Defocus detection, Object Left, Missing Object, Scene change detection, Auto tracking.
VCA Search
Face search, Behavior search, Face Map, Bar graph
Face Picture Database
32 libraries 10000 Face Pictures
NETWORK
Network Protocol
TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTP, RTSP, RTCP, ONVIF
Web Client
Multiple user online.
MOBILE DEVICE
OS
iOS/Andriod
STORAGE
HDD
SATA×8, max 16TB per HDD, e-SATAx1
RAID TYPE
RAID 0,1,5,6,10
BACK UP
Local Backup
U Disk, USB Mobile HDD
Network Backup
Yes
INTERFACE
Mode
Manual, Sensor, Motion, Exception
Input
16 CH Local alarm Input
Output
4 CH
Serial Port
1x RS485 (full-duplex), connect to PTZ or keyboard
Network Interface
RJ45 10/100/1000 Mbps × 2
USB
USB 2.0 × 2, USB 3.0 × 1
Reset
Yes
GENERAL
Power Supply
ATX 200W
Consumption
≤50W (without HDD)
Work Environment
-15～50 ℃, 10%～ 90% humidity
Dimensions(mm)
437mm×483mm×143mm (W × D × H)
