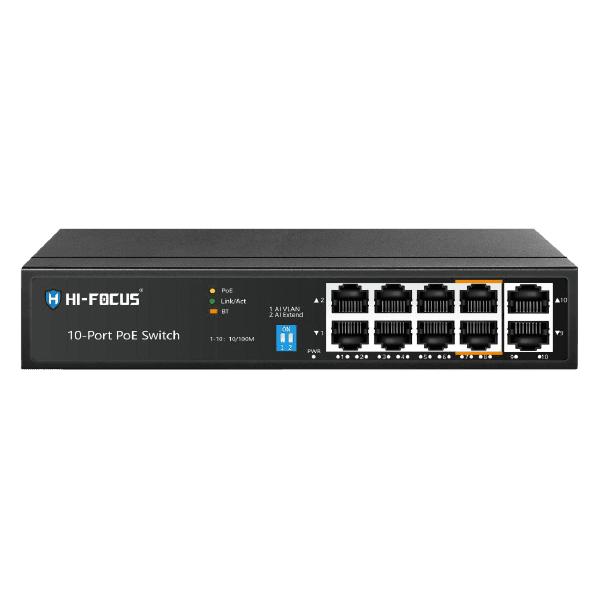

10 PORT PoE SWITCH
HF-S08E2-120WH
Product Features
- 8*10/100Mbps PoE RJ45 ports (port1~port8)
- 2*10/100Mbps RJ45 ports (port9~port10)
- Max PoE power: 7/8th ports max 60W; 1-6th ports max 30W
- Maximum power of PoE: 120W
- All ports support 6KV lightning protection
Specifications
- PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Networking Ports
8*10/100Mbps PoE RJ45 ports (port1~port8) 2*10/100Mbps RJ45 ports (port9~port10)
Network Standard
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Performance
Bandwidth: 2.0Gbps Packets Forwarding Rate: 1.49Mpps MAC table size: 1K Forwarding type: Storage and Forwarding
LED
Power Indicator LINK/ACT Indicator PoE Indicator
PoE
1/2(+), 3/6(-)
POWER
Port 7-8 max power: 60W PoE budget: 120W
Dimension
WxDxH: 210mmx152mmx40mm
Evironment
Working Temperature: 0 ° ~ 40 °C Storage Temperature: -40℃~70℃ Working Humidity: 10% ~ 90% RH nun-condensing Storage Humidity: 5% ~ 90% RH nun- condensing
