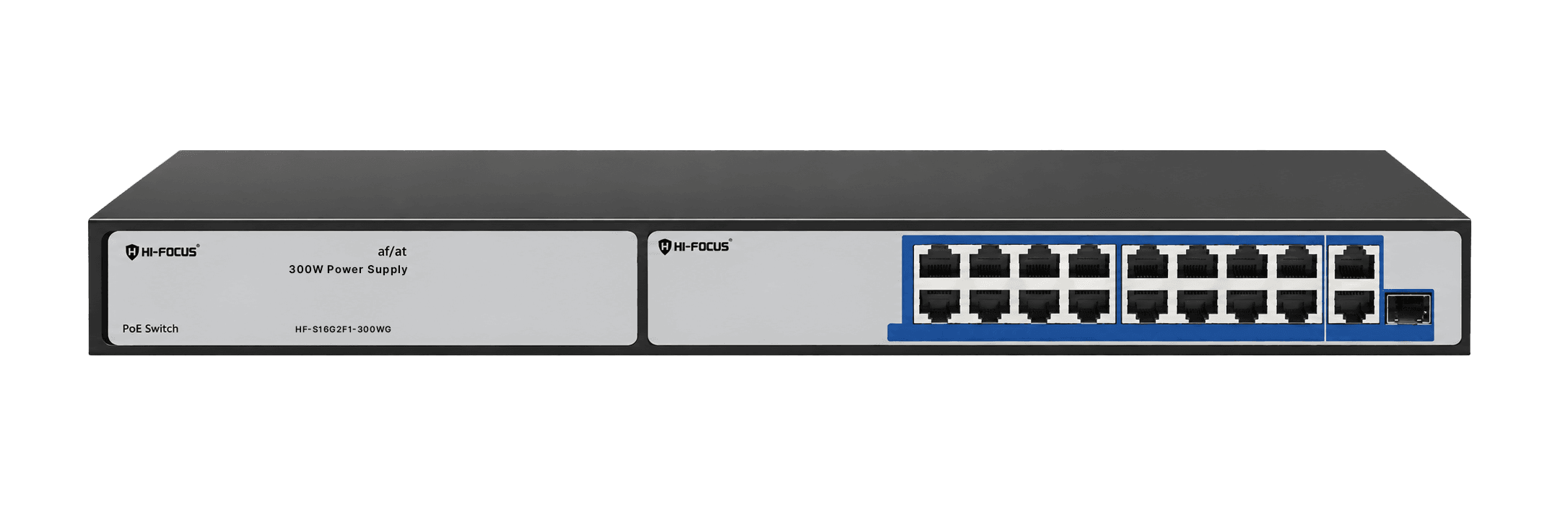

16 PORT FULL GIGA SWITCH +1SFP
HF-S16G2F1-300W
Product Features
- Using CAT.5 network patch cords supports power for the wireless AP/CPE and IP camera/PTZ
- Networking standard: IEEE802.3af/at/bt
- POE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts.
- PoE Watchdog AI Function: Detection of front-end PoE cameras and PD, Automatic detection, Automatic restart
- Upload port automatic flip (Auto MDI / MDIX)
- 6KV lightning protection, 8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, short-circuit protection
- The Max output power of the port is 60W, which is convenient for hi-power equipment
- The zero-configuration feature power supply is automatically supplied to the adaptive equipment
Specifications
- General Specifications
General Specifications
Ports
1*1000Mbps SFP Port+2*1000Mbps Uplink ports + + 16*100Mbps PoE ports
Transmission Rate
2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance
0-130m
Performance Specification
Bandwidth: 12.80 Gbps Network Latency (10 to 1000Mbps): ≤16us (use the 64byte package size) MAC address table: 8K Forwarding Rates: 26.8 Mpps
Networking Standard
Power input: AC 100~240V Total ≤ 300W PoE Watchdog: Port 1~16 Power output: PoE1~14Port:1/2(+52V),3/6(GND)<30W PoE 15~16 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W
Protection Level
Lightning Protection: 6KV ESD Protection: 8KV
Physical Specifications
Size(L*W*H)：430mm*180mm*45mm
Working Environment
Operating Temperature: -10C ~55C (-14°~131°F) Storage Temperature: -40C ~70C (-104°~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
