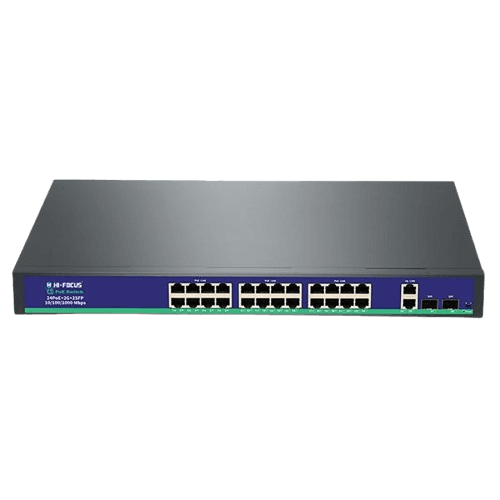

24 PORT POE SWTICH

HF-SG24G2F2-400WG

Supply 24*10/100/1000Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port
Supply 2*10/100/1000Mpbs RJ45 uplink port
Supply 2*1000Mpbs SFP uplink port
All ports supported by MDI/MDIX auto flip and selfnegotiation. Support IEEE802.3X Full-duplex and backpressurefor half-duplex mode24*10/100/1000Mpbs RJ45 port support POE+, meets therequirements for security monitoring, teleconference system,and wireless coverage.
Detect the PD devices automatically and supply the powerwithout damaging non-POE devices.

Specifications

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.ab, IEEE 802.AF/AT

24*10/100/1000Mbps RJ45 port 2*10/100/1000Mbps RJ45 uplink port 2*1000Mbps SFP uplink port

24*10/100/1000Mbps RJ45 port support POE+ The whole power max. is 400W Each port max. power supply reached 30W

1-24 port support IEEE802.3af/at Both1/2+, 3/6- and 4/5+, 7/8- End-span

Store and forward MAC address table 8k Switching capacity56Gbps

10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Operating Temperature: -10℃ - -55℃

Built in power base board Input: 220V, 50HZ, Output: DC52V±5% 7.7A ≤400W

2.9KG 440mm×284mm×44mm(L×W×H)
