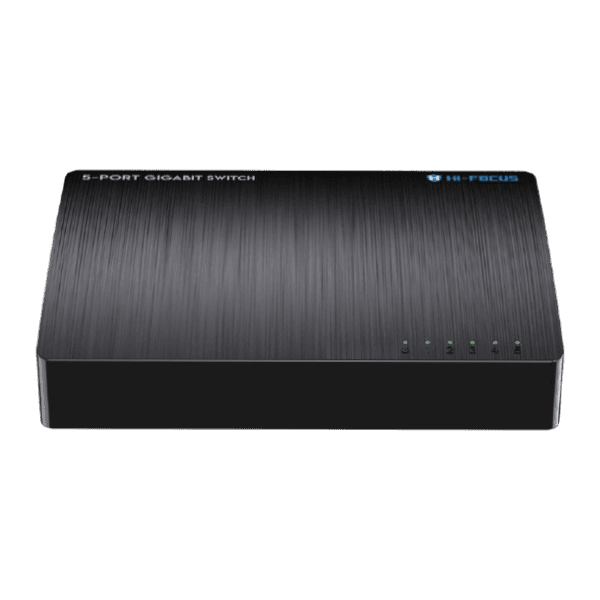

5 PORT GIGABIT ETHERNET SWITCH
HF-EGT05
Product Features
- 5 Port Gigabit Ethernet Switch, of high performance and easy maintenance
- It provides 5 10/100/1000Mbps auto-negotiation ports, and supports automatic MDI/MDIX
- With an attractive MINI desktop design, and 5 port, it is particularly suitable for small-size network
- These gigabit ports can not only be used as ordinary ports, but can also cascade to other network
- devices through UPLINK port
- In full duplex mode, it can be used to replace the 10, 100 Mbps switch, to solve the bottleneck
- problem of the server terminal Connection
- Provides 5 10/100/1000Mbps adaptive port, all ports wire-speed forwarding, up to 1000 megabits
- per second
- The ports can automatically identify the parallel line and intersecting line without pertinent setup
- It can be used directly when your line is connected, without special setup
Specifications
- PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface
5*10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX)
Transmission Media
Recommend Cat.5e UTP or better (<100 meters )
Forwarding Speed
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
Power Supply
Input: AC: 100-240V; 50/60Hz Output: 5.0V 0.6A (External Power Adapter)
Product Dimensions (L*W*H)
93*66*23mm
LEDs
1* Power, 5* Link/Act
Switching Capacity
10Gbps
MAC Address Table
4K
Power Consumption
Maximum : 1.7W (5V DC)
Transfer Method
Store and Forward
Access Control
CDMA/CD
MAC Address Learning
Automatic update
Temperature
Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃
Humidity
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Compatible OS
Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit , Linux , MAC OS
