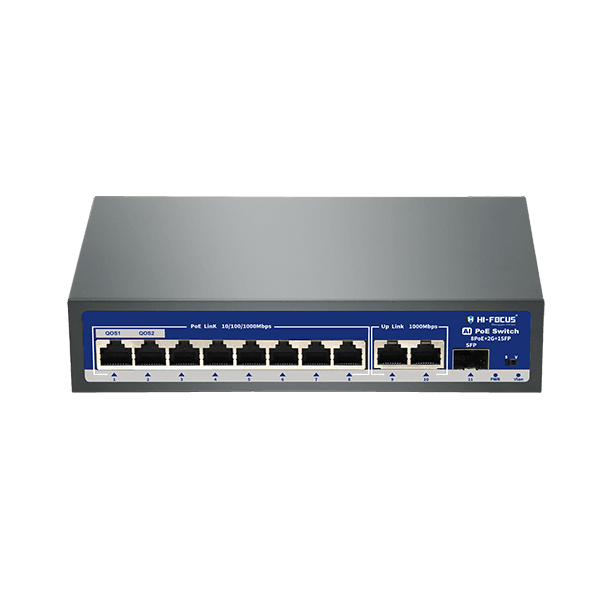

8 PORT AI POE-SWITCH

HF-SG08G2F1-120WG

Supply 8*10/100/1000Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port
Supply 2*10/100/1000Mpbs RJ45 uplink port
Supply 1*1000Mpbs SFP uplink port
All ports supported by MDI/MDIX auto flip and self negotiation. Support IEEE802.3X Full-duplex and backpressure for half-duplex mode
8*10/100/1000Mpbs RJ45 port support POE+, meets the requirements for security monitoring, teleconference system, and wireless coverage
Detect the PD devices automatically and supply the power without damaging non-POE devices

Specifications

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.ab, IEEE 802.af/at

8*10/100/1000Mbps RJ45 port 2*10/100/1000Mbps RJ45 uplink port 1*1000Mbps SFP uplink port

8*10/100Mbps RJ45 port support POE+ The whole power max. is 120W Each port max. power supply reached 30W

1-8 port support IEEE802.3af/at PoE Power Pin: Both1/2+, 3/6-

Store and forward MAC address table 2k Switching capacity 12Gbps

10BASE-tx: 14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

8.92Mpps

Operating Temperature: -10℃ - -55℃ Operating Humidity: 10% to 90% relative humidity (non-condensing)

Built in power base board Input: 220V, 50HZ, PoE Output: DC52V±5% 2.3A ≤120W

950g±5% 230mm×190mm×70mm(L×W×H)
