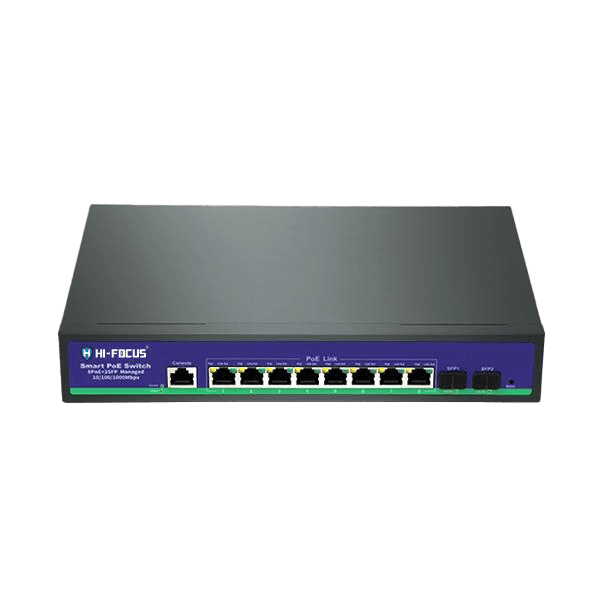

8 PORT POE-SWITCH
HF-SG08G0F2M-150WG
Product Features
- 8x10/100/1000Mbps RJ45 port (support POE+）
- 2x1000Mbps SFP uplink port
- 1xConsole RJ45 port
- Supply 802.1QVLAN, port VLAN, QoS, bandwidth
- control and storm control
- Supply port trunk, port mirroring, port monitoring,
- cable detection and loopback protection
- Supply web management, VLAN and standard
- switching
Specifications
- HARDWARE SPECIFICATION
- SOFTWARE SPECIFICATION
- MANAGEMENT FUNCTION
HARDWARE SPECIFICATION
Support Criteria
IEEE 802.3, 802.3u, 802.3x, 802.3af/at, CSMA/CD, TCP/IP
Port
8x10/100/1000Mbps Adaptive port， support POE function， 2x1000Mbps SFP port， 1xConsole port
Basic Function
Compatible with IEEE 802.3AF/AT compliant Powered Devices (PD) Port power priority feature Wire-speed forwarding MAC self-learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
Backplane bandwidth
20Gbps
MAC Addresses List
8K
Forwarding mode
Store and forward
Forwarding method
10BASE-T: 14880PPS/port 100BASE-T: 148800PPS/port 1000BASE-T: 1488000PPS/port
Forwarding rate
14.9Mpps
LED indicator
Power, SYS, Link/Act: 10/100/1000Mbps, POE
Environment
Operating Temperature: -10℃ - -55℃ Storage temperature: -40°-- 85°C
Power
Built in power base board Input: 220V, 50HZ, Output: DC52V±5%, 2.3A Whole power≤120W
Weight & Size
1KG 270mm×180mm×44mm(L×W×H)
SOFTWARE SPECIFICATION
Port Management
Enable/Disable port Speed, duplex, MTU setting Flow-control setting Port information view
Port Mirroring
Support port and aggregation group access direction
Port Speed Limiting
Support port speed limit, the granularity of the speed limit is determined by the chip
Port Isolation
Support port isolation setting
Storm control
Support location unicast, unknown multicast, broadcast storm control
Link Aggregation
Manual load sharing and static LACP mode
VLAN
Access/Trunk/Hybrid Support VLAN division based on port, protocol and MAC
MAC
Support static add and delete MAC address learning quantity limit Support dynamic aging time setting
Spanning Tree
Support 802.1d (RSTP); Support IGMP-snooping; Support 802.1S (MSTP)
Multicasting
Support static add and delete; Support IGMP-snooping; Support MLD-snooping; Support V1/2/3dynamic multicast snooping
DDM
Support SFP/SFP+DDM
ACL
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number
QOS
Classification based on 802.1P (COS); classification based on DSCP. Classification based on source IP, destination IP, port number; support for SP, WRR scheduling policies. Support traffic speed limit CAR
LLDP
Support LLDP link discovery protocol
User Setting
Add/Remove Users
Log
User login, operation, status, event record log
Anti-attack
DOS Defense Support for CPU protection, limiting the rate of upgoing CPU messages ARP binding (IP, MAC, PORT binding)
Certification
Support 802.1X port authentication; support AAA authentication
Network Diagnosis
Support ping, telnet, trace
System Administration
Device reset, configuration save/revert, upgrade management, time setting, etc.
MANAGEMENT FUNCTION
CLI
Support serial port command line management
TELNET
Support telnet remote management
SSH
Support SSHV1/2 remote management
SNMP
Support V1/2/3 Support trap: cold start, warm start, link down and link up
Web
Support two levels of settings, two or three levels of view
RMON
Support RMONV1
POE Configuration
POE configuration, POE scheduling management, etc.
