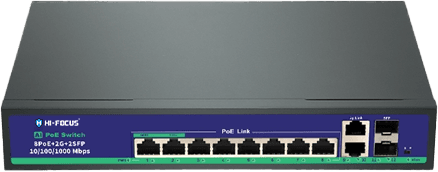

8 PORT POE SWITCH

HF-SG08G2F2-150WG

Supply 8*10/100/1000Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port
Supply 2*10/100/1000Mpbs RJ45 uplink port
Supply 2*1000Mpbs SFP uplink port
All ports supported by MDI/MDIX auto flip and selfnegotiation. Support IEEE802.3X Full-duplex and backpressure for half-duplex mode
8*10/100/1000Mpbs RJ45 port support POE+, meets the requirements for security monitoring, teleconference system,and wireless coverage
Detect the PD devices automatically and supply the powerwithout damaging non-POE devices

Specifications

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.ab, IEEE 802.AF/AT

8*10/100/1000Mbps RJ45 port 2*10/100/1000Mbps RJ45 uplink port 2*1000Mbps SFP uplink port

8*10/100Mbps RJ45 port support POE+ The whole power max. is 120W Each port max. power supply reached 30W

1-8 port support IEEE802.3af/at Both1/2+, 3/6- and 4/5+, 7/8- End-span

Store and forward MAC address table 4k Switching capacity 16Gbps

10BASE-T:14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Operating Temperature: -10℃ - -55℃

Built in power base board Input: 220V，50HZ，Output：DC52V±5% 2.3A ≤120W

1.5KG 270mm×180mm×44mm(L×W×H)
