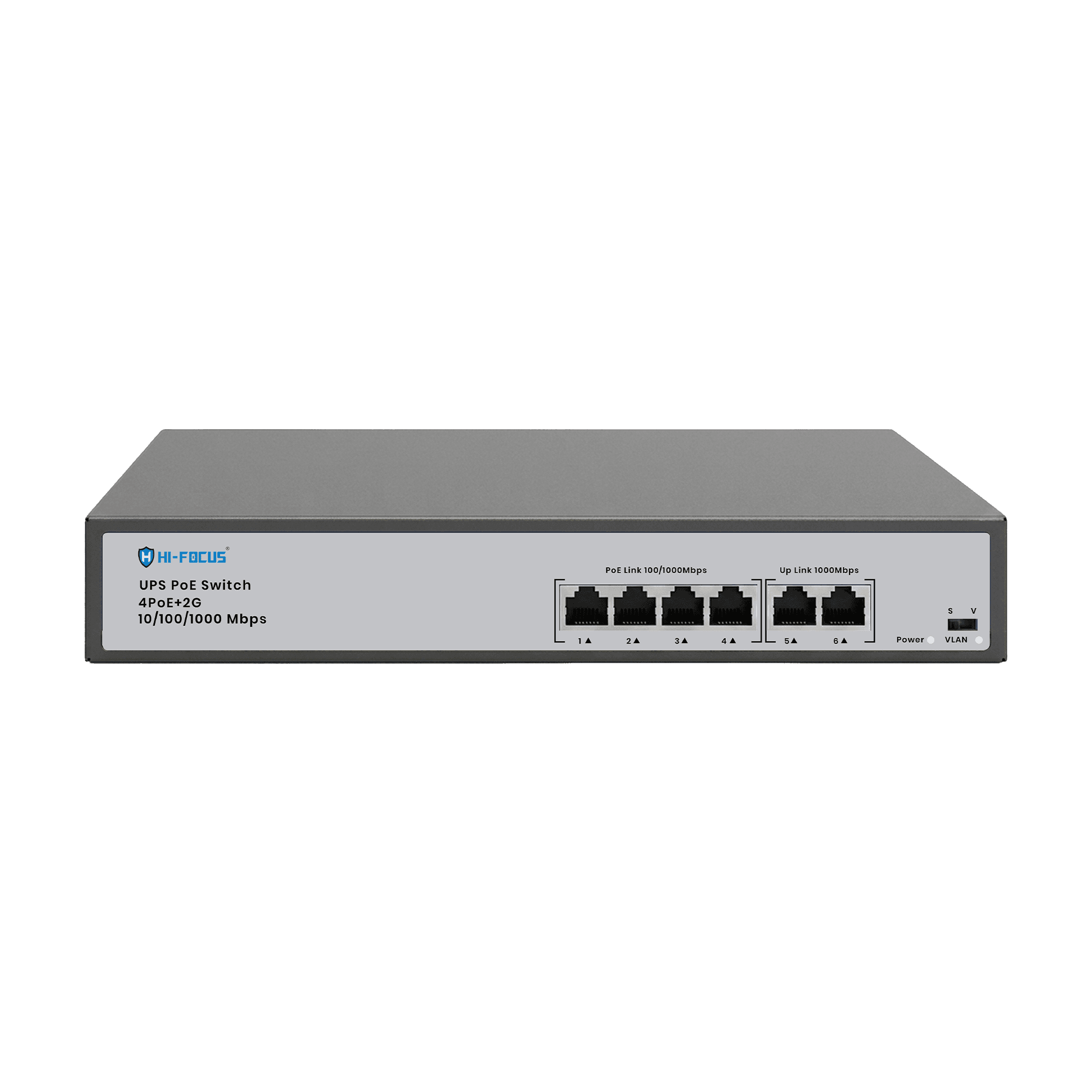

POE Switch UPS 4 Port
HF-SG04G2-75WG-U6
Product Features
- 4x1000mbps Gigabit POE ports
- 2x1000mbps uplink Gigabit ports
- Support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management.
- WEB, TELNET, CLI management
- With dual-path redundant power supply function
Specifications
- NETWORK SPECIFICATION
- SOFTWARE SPECIFICATION
- POE POWER SUPPLY
- GENERAL
NETWORK SPECIFICATION
Network Standard
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.1Q, IEEE 802.1p
Network Medium
10/100/1000BASE-TX: Category 5 and above unshielded twisted pair
Data Distance
≤100M
Switch Capability
12Gbps
Forwarding Rate
10BASE-tx: 14880pps/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port
MAC Address
MAC address table 2K
Port Function
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Forwarding Rate of Packet
8.92Mpps
SOFTWARE SPECIFICATION
Web management
Default IP: 192.168.0.200 or 10.77.88.100 Username: admin Password: admin
Management IP
Supports static IP configuration; Supports automatic acquisition via DHCP
User Settings
Support change user name, change log-in password
Port Management
Support port disabling and enabling; Support MTU setting Support speed, duplex, and flow control settings
Link Aggregation
Supports up to 2 aggregation groups
loopback protection
Support loopback protection
Port Mirroring
Supports up to 2 sets of mirror sessions; Support mirroring of ingress and egress traffic of ports and aggregation groups.
Port speed limit
Support limits the speed of port’s in and out
EEE
Support energy-saving Ethernet protocol
PoE
Support PoE configuration
VLAN
Support MTU VLAN Support VLAN port Support 802.1Q VLAN
QOS
Supports classification based on 802.1p (COS), DSCP, and port Support SP, WRR, WFQ scheduling strategies
Multicast
Support IGMP Querier
MAC management learning
Support limit on the number of port MAC address Support adding and deleting static MAC addresses Support viewing of dynamic MAC address table
Storm Suppression
Support storm suppression for unknown unicast, multicast, and broadcast packets
Traffic Monitoring
Support monitoring of the number of bytes sent and received, as well as the number of messages sent and received
Cloud-network Link
APP cloud management
System Management
Support system upgrade Support system backup and restore Support reset Support configuration saving; Support switching between Chinese and English Support system name modification
POE POWER SUPPLY
POE Protocol
IEEE 802.3af/at
Output Power of PoE Port
Single Port≤30W
PoE Output Voltage
DC52V±5%
PoE Power Pin
1/2+, 3/6-
PoE Power Distance
≤250m
Network Medium
0/100/1000BASE-TX: 5 class and above non shielded twisted pair
Whole Power
MAX: 65W
Insulation resistance
AC L/N to ground: DC 500V ≥30M
Insulation withstand voltage
AC L/N to ground: AC 1500V ,1MIN, <10mA
Ground resistance
Chassis to ground: 32A ,2MIN, <0.01Ω
GENERAL
Working Temperature
-10°C-55°C
Storage Temperature
-40°C-85°C
Working Humidity
10% to 90% relative humidity (non-condensing)
Storage Humidity
5% to 95% relative humidity (non-condensing)
Altitude
Working: Up to 6500ft (2000m) Storage: Up to 6500ft (2000m)
Cooling Method
ventilation cooling
Vibration Resistance
10-55Hz, 49.0m/s2(5G), cycle 3 minutes, 60 minutes each for X, Y, Z axis.
Shock Resistance
196.1m/s2 (20G), 11ms, once each for X, Y and Z axes
Weight
Bare metal: 1740g±5% Finished product: 2240g±5%
Product Size
Dimensions of Bare Metal: (Length)270mm*(Width)181mm*(High)44mm Finished Product Size: (Length)350mm*(Width)240mm*(High)90mm
