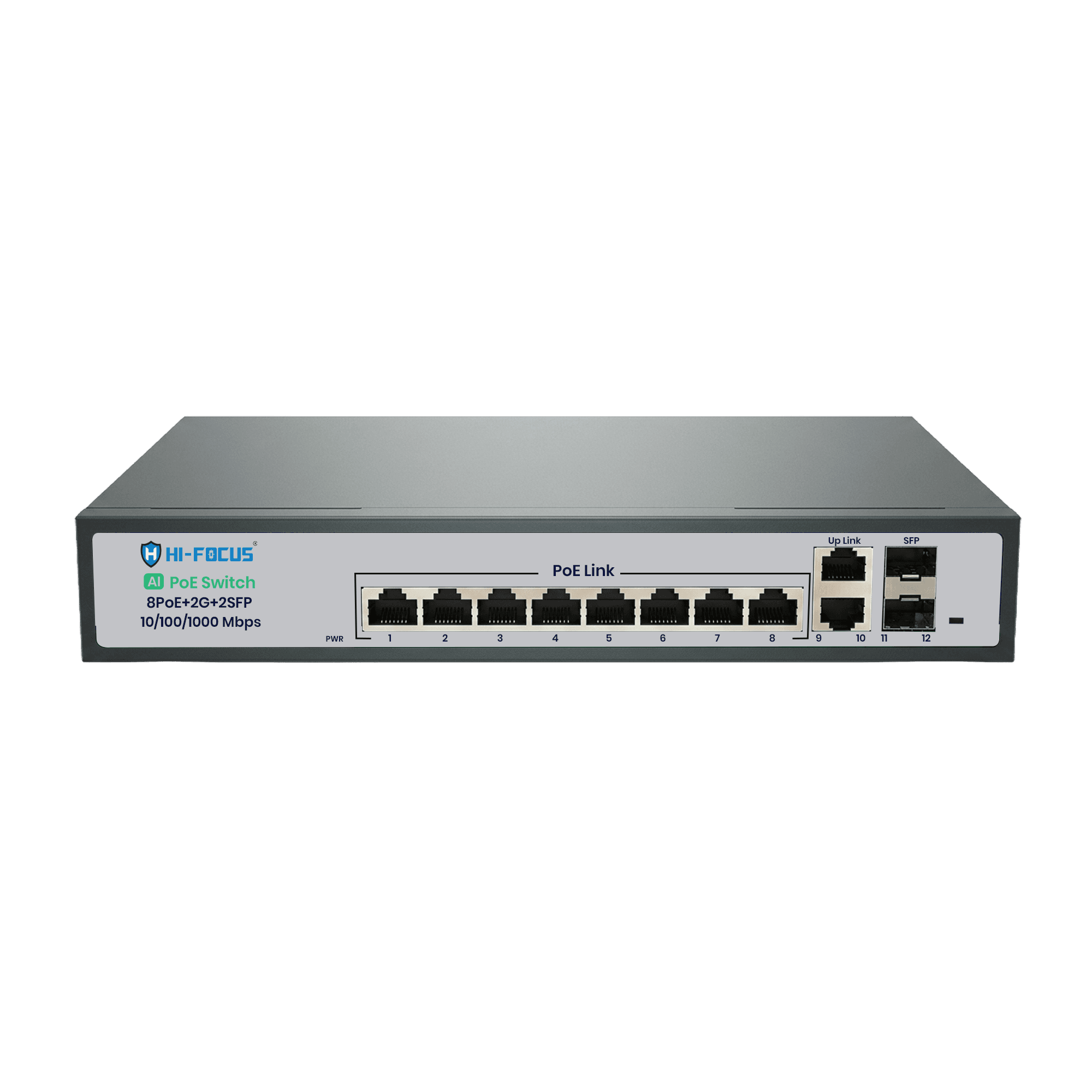

POE Switch UPS 8 Port
HF-SG08G2F2-150WG-U6
Product Features
- 8x1000Mbps Gigabit POE
- 2x1000Mbps Gigabit Uplink ports
- 2 SFP fibre ports
- With the PoE port isolated VLAN function
- With a dual-path redundant power supply function
Specifications
- General Specifications
- POE POWER SUPPLY
- INSULATION PERFORMANCE AND EARTH RESISTANCE
- ENVIRONMENTAL REQUIREMENTS
General Specifications
Network Standard
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Network Medium
10/100/1000BASE-TX: Category 5 and above unshielded twisted pair
Data Distance
≤100M
Backplane bandwidth
12Gbps
Forwarding Rate
10BASE-tx: 14880pps/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port
MAC Address
2K
Port Function
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Forwarding Rate of Packet
8.92Mpps
POE POWER SUPPLY
Network Standard
IEEE 802.3af/at
Output Power of POE Port
Single Port≤30W
POE Output Voltage
DC52V±5%
POE Power Pin
1/2+、3/6- Lines pair
POE Power Distance
≤100m
Network Medium
10/100/1000BASE-TX: Category 5 and above unshielded twisted pair
Whole Power
MAX: 96W
INSULATION PERFORMANCE AND EARTH RESISTANCE
Insulation resistance
AC L/N to ground: DC 500V ≥30M
Insulation withstand voltage
AC L/N to ground: AC 1500V ,1MIN, <10mA
Ground resistance
Chassis to ground: 32A ,2MIN, <0.01Ω
ENVIRONMENTAL REQUIREMENTS
Environmental temperature
Working: -10°C-55°C Storage: -40°C-85°C
Humidity
Working: 10% to 90% relative humidity (non-condensing) Storage: 5% to 95% relative humidity (non-condensing)
Altitude
Working: Up to 6500ft (2000m) Storage: Up to 6500ft (2000m)
Cooling Method
ventilation cooling
Vibration Resistance
10-55Hz, 49.0m/s2(5G), cycle 3 minutes, 60 minutes each for X, Y, Z axis
Shock Resistance
196.1m/s2 (20G), 11ms, once each for X, Y and Z axes
Weight
Bare metal: 1965g±5% Finished product: 2500g±5%
Product Size
Dimensions of Bare Metal: (Length)270mm*(Width)181mm*(High)44mm Finished Product Size: (Length)350mm*(Width)240mm*(High)90mm
