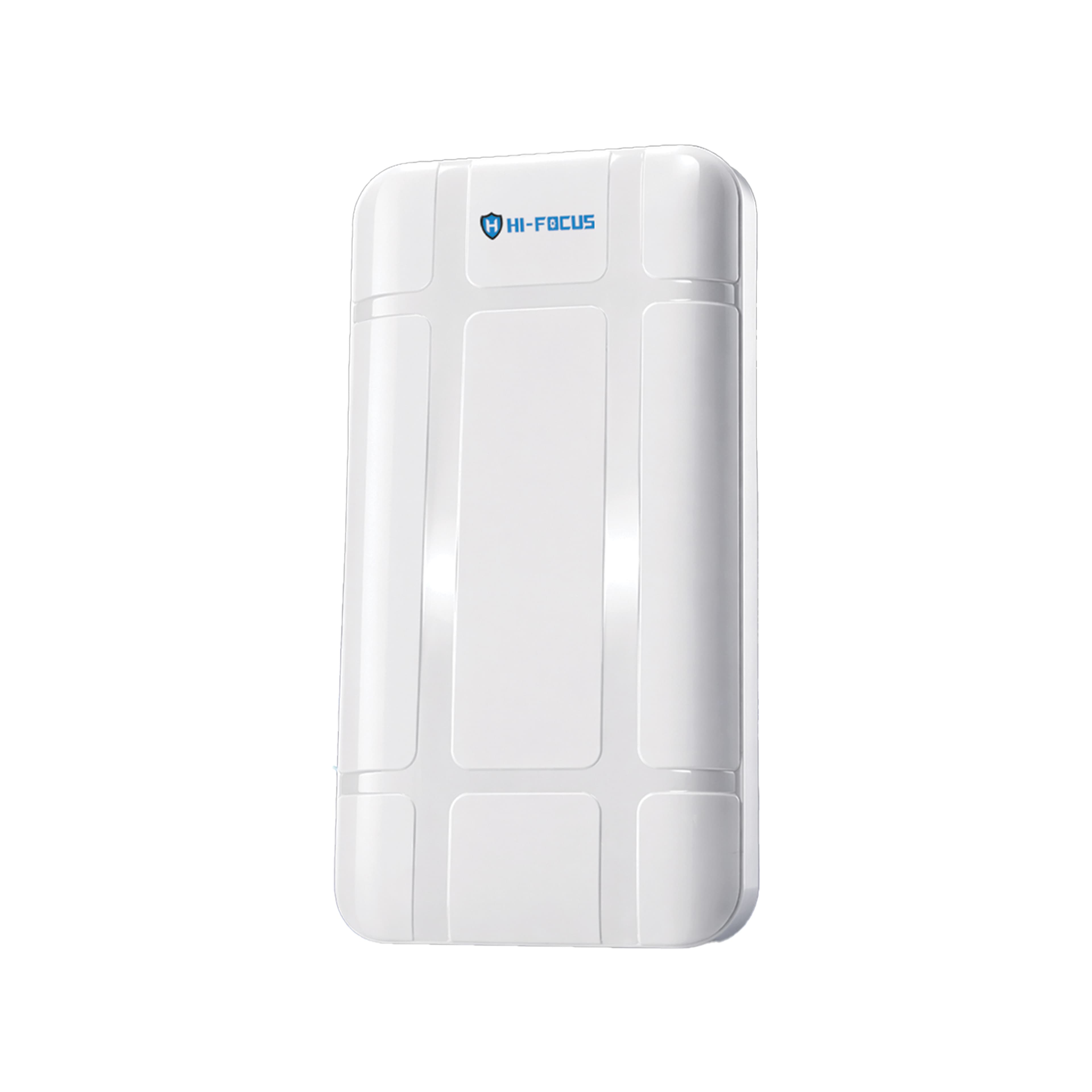

4G OUTDOOR ROUTER
Hf-R3100-4G-W6
Product Features
- 5G SIM Support: High- speed cellular connectivity for reliable internet access
- Outdoor Router Design: Built for stable performance in outdoor environments
- PoE (Power over Ethernet): Single cable for both power and data transmission
- Long-Range Wireless Transmission: Extended coverage for wider area connectivity
- 12V DC Power Input: Flexible power supply option
- IP66 Rated Enclosure: Water and dust resistant for harsh conditions
Specifications
- GENRAL SPECIFICATIONS
GENRAL SPECIFICATIONS
Product Over view
4G LTE Cat4 + WiFi 6 (2.4GHz) CPE with PoE support for broadband and CCTV deployments.
System Architecture
ASR1803S LTE platform with AIC8800DW WiFi 6 chipset (2.4GHz, 1T1R).
Cellular Specifications
LTE Cat4 DL 150 Mbps / UL 50 Mbps. WCDMA DL 21.6 Mbps / UL 5.76 Mbps.
WiFi Specifications
802.11 ax/b/g/n, 2.4GHz, 1T1R, 20/40MHz bandwidth, OFDMA, MU-MIMO, WPA3 support.
Hardware
External SIM, External antennas (4G 1x1, WiFi 1x1), Reset button, LED indicators (LAN/4G/WiFi
Power
12V/1A DC or PoE input.
Environment
Operating temperature: 0°C to 55°C.
Applications
FWA, rural broadband, CCTV connectivity, IoT gateway
