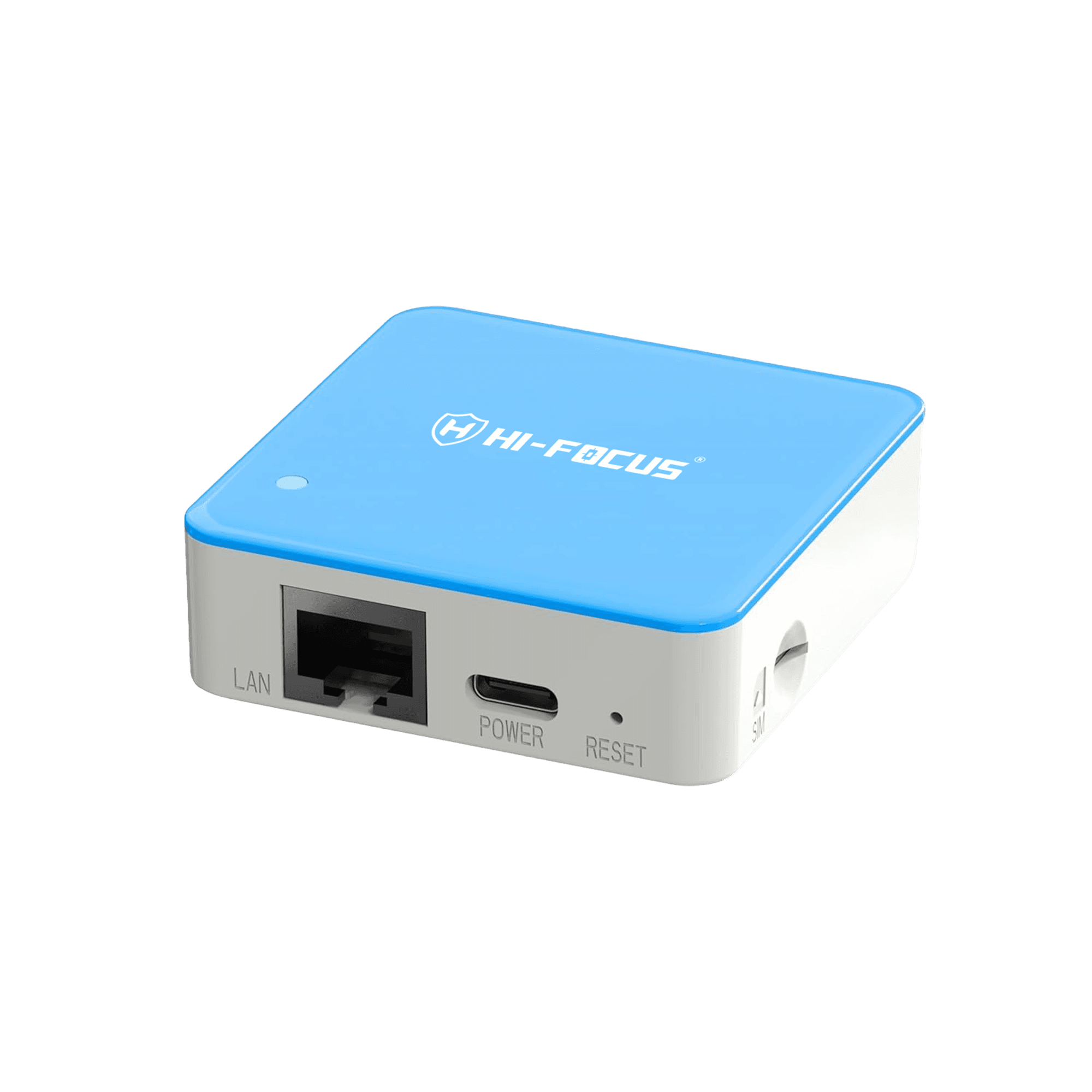

4G WIRELESS ROUTER
HF-R1100T- 4G
Product Features
- LTE CAT4
- Mini Size, Internal Antennas, Packaging-Saving
- WiFi 4, 2.4GHz 1*1MIMO Up to 72.2Mbps
- Usage scenario: Indoor, Outdoor, Home, Office, etc.
- XMC1842 LTE CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in LTE CAT4, WIFI Hotspot, Ethernet LAN and Web-UI management.
Specifications
- LTE WAN Feature
- Function Data
- Hardware Parameter
LTE WAN Feature
Frequency Bands
FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 UMTS: B1/B5/B8 WCDMA: B1\B2\B4\B5\B8
Bandwidth
1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation
DL: QPSK/16-QAM/64-QAM, comply with 3GPP UL: QPSK/16-QAM, comply with 3GPP
LTE Antenna
MIMO: 2 * 2 LTE Antennas, Internal
RF Power Level
LTE: Power Class 3 (23 dBm + 2.7/-3.7dB) UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)
Data Rate
4G: 3GPP R9 Cat4, FDD:DL/UL up to 150Mbps/50Mbps, TDD:DL/UL up to 110Mbps/10Mbps 3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps
Function Data
Interfaces
LAN: 1*RJ45 with 10/100Mbps
USIM
Single, Standard SIM slot 4FF
System
Connection Status/Statistics/Device Management
Language
Chinese/English/Española/Portuguese, Customized
Mobile Service
SMS Manager Auto-APN according to USIM Auto Data Connection USSD Service PIN/PUK Management Network Mode Selection(3G/LTE/Auto)
Router
Support SSID, APN management IPv4/IPv6 DHCP Server, Dynamic IP, Sta�c IP Access Control, Local Management Support OPEN, WPA2(AES)-PSK, WPA- PSK/WPA2-PSK Firewall (Only support IPv4) PORT Filtering/Port Forwarding
Operating System
Windows 7/8/XP/10 MAC OS 10.10+ Andriod 10/11 Linux Ubuntu 15.04+ Browser Edge, Firefox, Google Chrome, Safari, Opera
Hardware Parameter
Dimension
56.2*56.2*18.9 mm(L×W×H)
Net weight
About 33.8g
Operating condition
Operating temp: -20°C ~ +45°C
Storing condition
Storing temp: -20°C ~ +60°C
Power adapter
DC 5V/1A
Power supply
≤5W
Interface
1FE+USIM+WiFi4
Indicators
POWER/LTE Status LED
