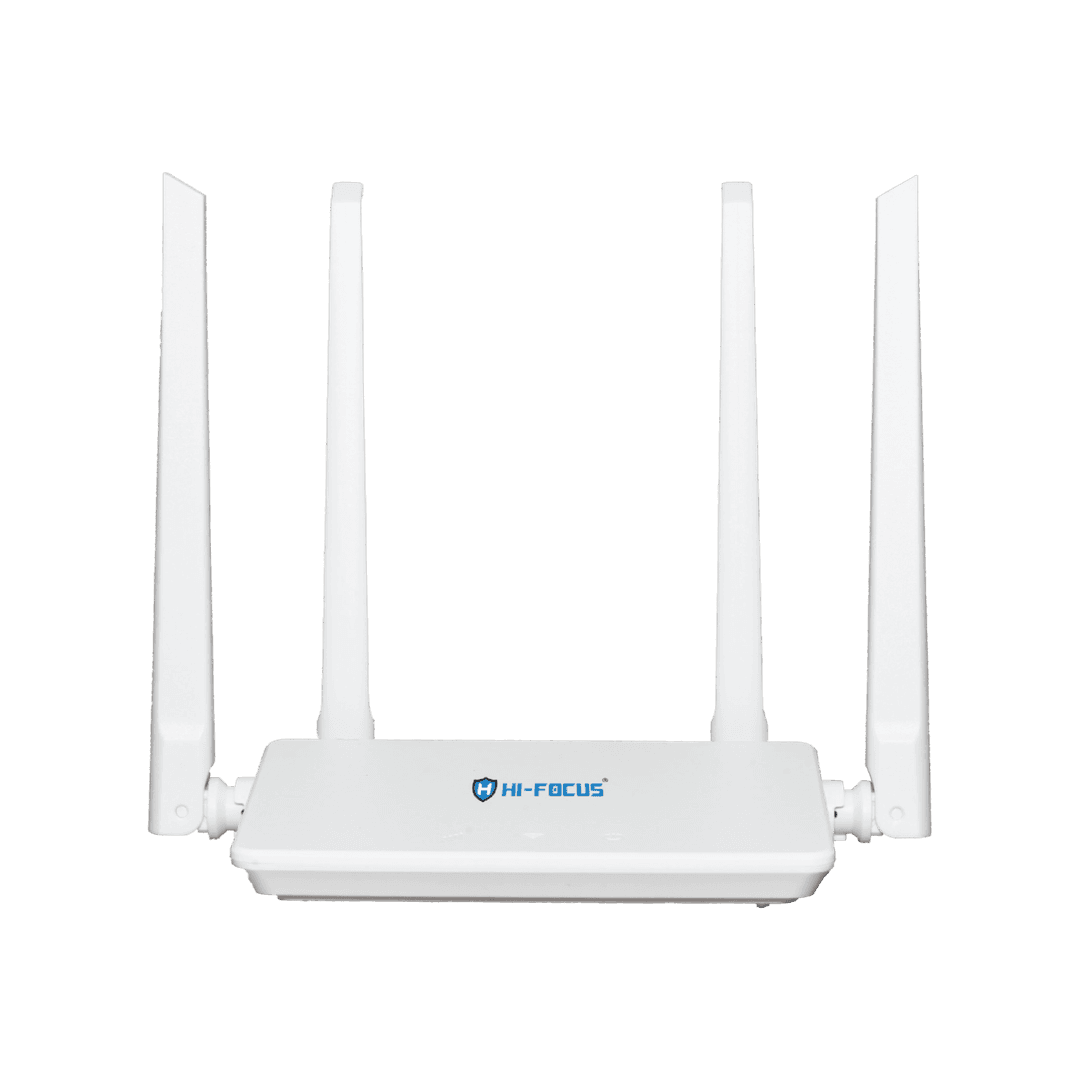

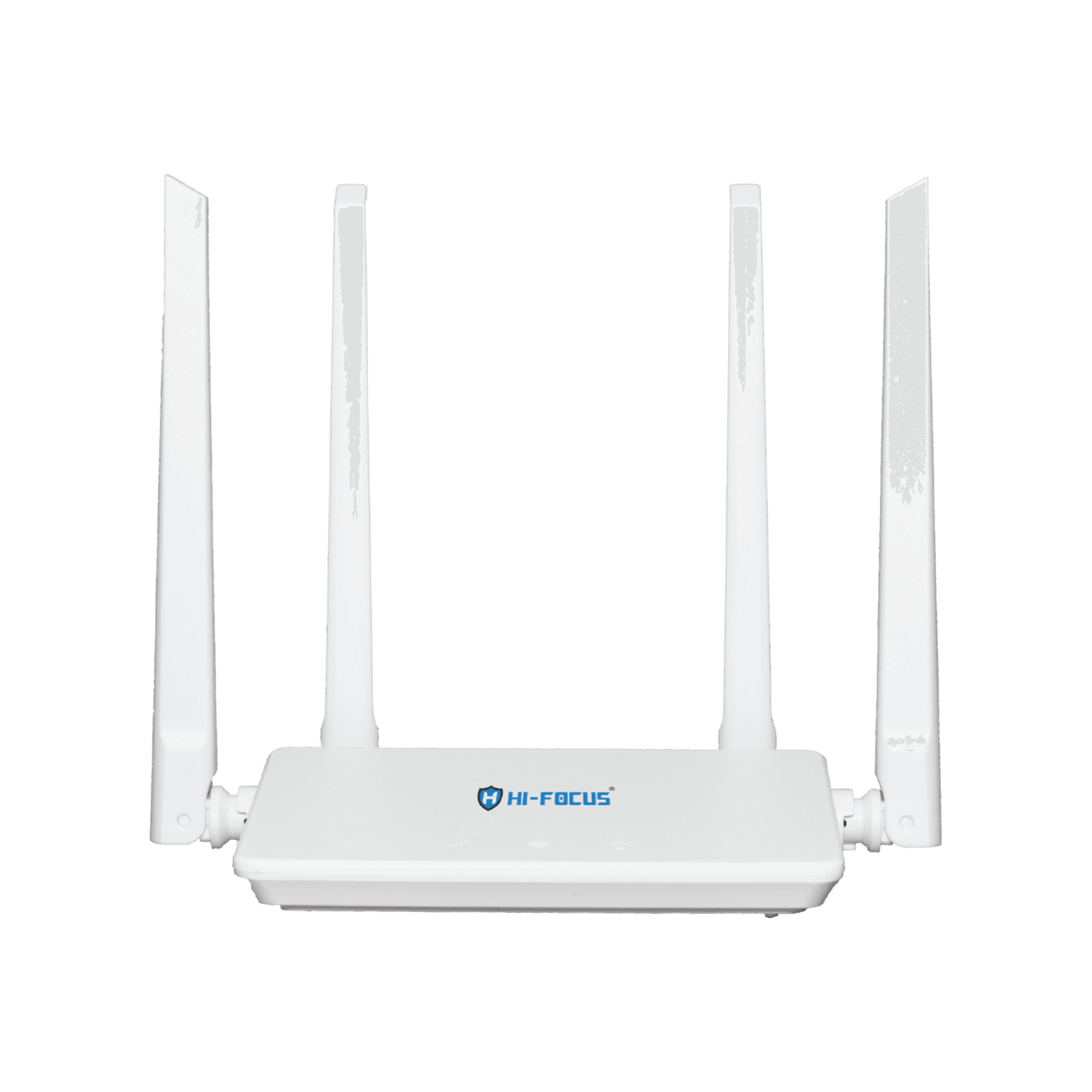

LTE 4G ROUTER
HF-R1004T-4G-W6
Product Features
- 2 LTE external antennas & WiFi external antennas
- Support Firewall: Port Filtering/ Port Mapping/ Port Forwarding, UPnP, DMZ
- 2 Usage scenario: Indoor, Home, office, etc.
Specifications
- Genral
- LTE WAN Feature
- WALN Feature
- Hardware Parameter
Genral
Interfaces
LAN: 1*RJ45 with 10/100Mbps
USIM
Single, Standard SIM slot 4FF
System
Connection Status/Statistics/ Device Management
Language
English
Mobile Service
. SMS Manager . Auto-APN according to USIM . Auto Data Connection . PIN/PUK Management . Network Mode Selection(LTE)
Router
. Support SSID, APN management,IPv4 . DHCP Server, Dynamic IP, Static IP . Access Control, Local Management . Support OPEN, WPA-PSK/WPA2-PSK . Firewall . PORT Filtering
Operating System
· Windows 7/8/XP/10 . MAC OS 10.10+ . Andriod 10/11 · Linux Ubuntu 15.04+ . Browser Edge, Firefox, Google Chrome, Safari, Opera
LTE WAN Feature
Frequency Bands
. FDD LTE: B1/B3/B5/B8 . TDD LTE: B38/B40/B41
Bandwidth
1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation
. DL: QPSK/16-QAM/64-QAM, comply with 3GPP . UL: QPSK/16-QAM, comply with 3GPP
LTE Antenna
4*External LTE Antennas
RF Power Level
. LTE: Power Class 3 (23 dBm + 2.7/-3dB)
Date Rate
4G: 3GPP R9 Cat4, FDD: DL/UL up to 150Mbps/50Mbps, TDD: DL/UL up to 110Mbps/10Mbps
WALN Feature
Wi - Fi Frequency
2.4GHz, 1-13Channel
Transmit Power
·17±2dBm@802.11b .15±2dBm @802.11g .13±2dBm @ 802.11n .12±2dBm @802.11ax
Wi - FI Antenna
4 *External Antenna
Protocal
802.11 b/g/n/ax
Date Rate
. 802.11b:Up to 11 Mbps . 802.1 lg: Up to 54 Mbps . 802.1 In: up to 150 Mbps . 802.1 lax: Up to 286.8 Mbps
Hardware Parameter
Diminsion
150mmx105mmx30mm(LxWxH)
Net Weight
About 176g
Operating Temp
-20℃~+45℃
Power Adapter
DC 12V,1A
Power Supply
<12W
Interfae
1FE+U-SiM+WiFi
Indicators
POWER, WiFi, LAN, LTE
Buttons
Reset/WPS
