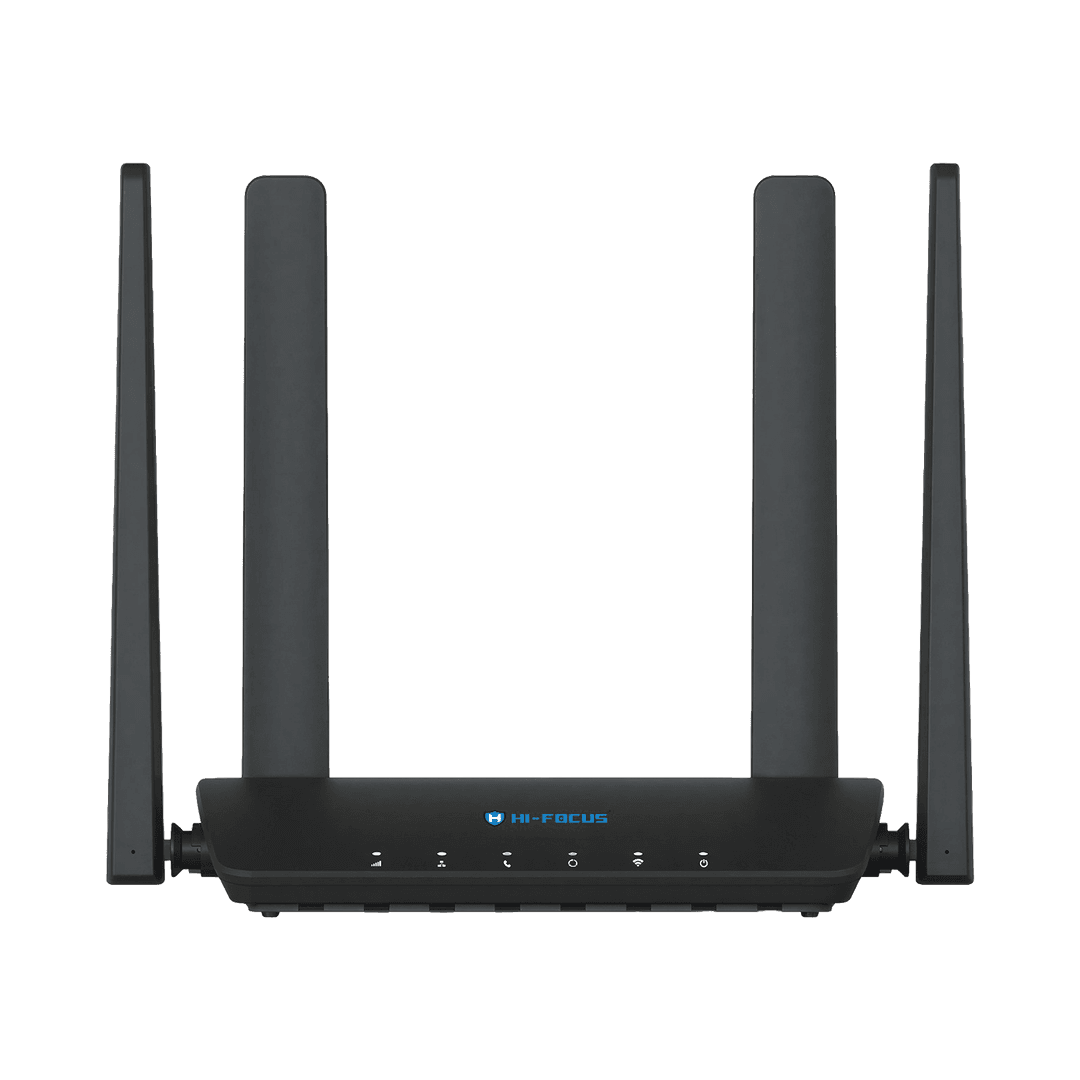

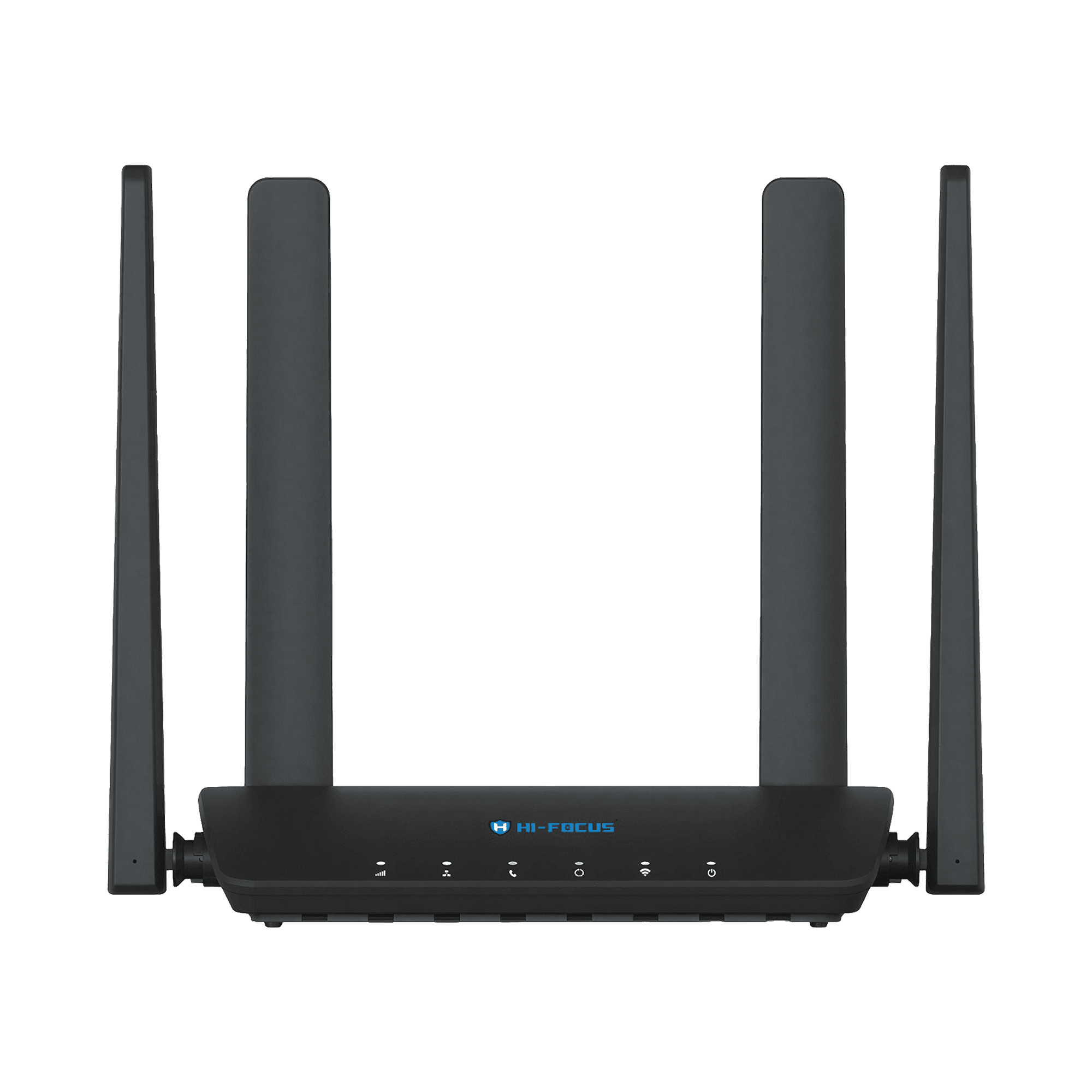

LTE 4G ROUTER
HF-R1104T-4G-V300
Product Features
- LTE external antennas & WiFi external antennas
- Supports Firewall: PORT Filtering/ Port Mapping/ Port Forwarding, UPnP, DMZ
- Usage scenario: Indoor, Home, office, etc.
Specifications
- General Specifications
- LTE WAN Feature
- WLAN Feature
- Hardware Parameter
General Specifications
Interfaces
LAN: IxRJ45 with 10/100Mbps
USIM
Single, Standard SIM slot 4FF
Web UI
System:Connection Status/Statistics/Device Management/Power Mangement Language: English
Router
Support SSID, APN management, Access Control, Local Management
Security
Support WPA2(AES)-PSK/, WPA- PSK/WPA2-PSK encryptions, Support Firewall, VPN Pass through contains IPSecVPN,PPTP VPN, L2TP VPN, PORT Filtering/ Port Mapping/ Port Forwarding, UPnP, DMZ
Operating
Windows 7/8/XP/10, MAC OS 10.10+, Andriod 10/11, Linux Ubuntu 15.04+, Browser IE9+, Firefox, Google Chrome, Safari, Opera
LTE WAN Feature
Frequency Bands
FDD LTE: BI/B3/B5/B8, TDD LTE: B40/B41
Bandwidth
1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation
DL: QPSK/16-QAM/64-QAM, comply with 3GPP, UL: QPSK/16-QAM, comply with 3GPP
LTE Antenna
External LTE Antennas
RF Power Level
LTE: Power Class 3 (23 dBm + 2.7/-3.7dB), UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)
Data Rate
4G: 3GPP R9 Cat4, FDD: DL/UL up to 150Mbps/50Mbps, TDD: DL/UL up to 3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps
WLAN Feature
Wi-Fi Frequency
2.4GHz, 1-13Channel
Transmit Power
17±2dBm @ 802.11b, 15±2dBm @ 802.1 lg, 14±2dBm @ 802.1 In
Receiver input level sensitivity
<-76dBm at the antenna port QPSK, 11Mbps, 1024 Byte PSDU @ 802.11b, <-65dBm at the antenna port,64QAM, 54Mbps, 1024 Byte PSDU @ 802.11g, -64dBm at the antenna 64QAM, 65Mbps, 4096 Byte PSDU 802.1 In(HT20)
WiFi Antenna
External Antenna
Protocol
802.11 b/g/n
Data Rate
802.11b:Up to 11 Mbps, 802.1 lg: Up to 54 Mbps, 802.1 In: Up to 300 Mbps
Hardware Parameter
Dimension
150mmx105mmx30mm(LxWxH)
Net weight
230g
Operating condition
Operating temp: -20°C~ +45°C
Storing condition
Storing temp -20°C~ +60°C
Power adapter
DC 12V,1A
Power supply
<12W
Interface
1FE+USIM+WiFi
Indicators
POWER, WiFi, LAN, LTE
Buttons
Reset/WPS
