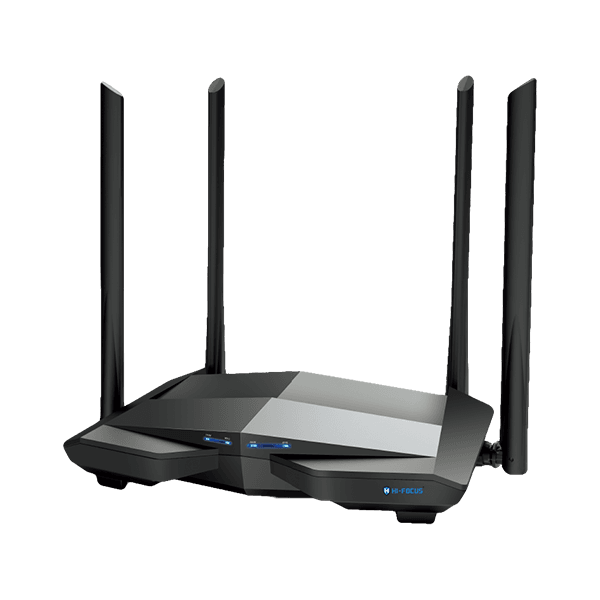

DUAL BAND GIGABIT
HF-R2104T-W-1200M
Product Features
- Hardware Specification
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab
- Interface: 1*10/100/1000Mbps WAN port;
- 3*10/100/1000Mbps LAN ports;
- Antenna: 5*6dBi external antennas
- Button: 1* WPS/Reset button,1*WiFi ON/OFF
- Power: Input:100-240V—50/60Hz, 0.2A
- Output:DC 12V1A
- Dimensions: 8.66 * 5.57 * 1.93 in (220*141.5*49mm)
- LED Indicator: Sys*1,WAN*1, LAN*1,WiFi/WPS*1
Specifications
- Wireless Features
- Software Features
- Others
Wireless Features
Wireless Standards
IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Data Rate
5GHz: Up to 866Mbps 2.4GHz: Up to 300Mbps
Frequency
2.400-2.4835GHz 5.150-5.250GHz
Transmit Power
CE: <20dBm(2.4G) <23dBm(5G)
EIRP Power (Max)
2.400-2.4835GHz:19.86dBm (EIRP) 5.150-5.250GHz:22.96dBm (EIRP)
Basic Features
SSID Broadcast: Enable/Disable; Transmission Power: high, medium, low Beamforming MU-MIMO
wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2; Wireless Security: Enable/Disable; WPS(WiFi Protected Set-up) fast encryption
Software Features
Internet Connection Type
PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode
Wireless Router Mode Universal Repeater Mode WISP Mode
DHCP Server
DHCP Server DHCP Client List DHCP Reservation
Virtual Server
Port Forwarding DMZ Host UPnP
Security
Client Filter Parental Control(support black list and white list) Remote Web Management
Firewall
Forbid WAN PING from internet
DDNS
Support DynDNS, Oray.com, 88ip
VPN
IPsec pass through PPTP pass through L2TP pass through
Special Features
Smart Traffic Prioritisation PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off
Others
Bandwidth Control Guest Network IPTV MAC Clone Static Routing System Log Backup & Restore configurations Firmware upgrade online Firmware upgradeable via browser Supports IPv6
Others
Temperature
Operating Temperature: 0℃ ~ 40℃; Storage Temperature: -40℃ ~ 70℃.
Humidity
Operating Humidity:10% ~ 90% RH non-condensing; Storage Humidity: 5% ~ 90%RH non-condensing.
