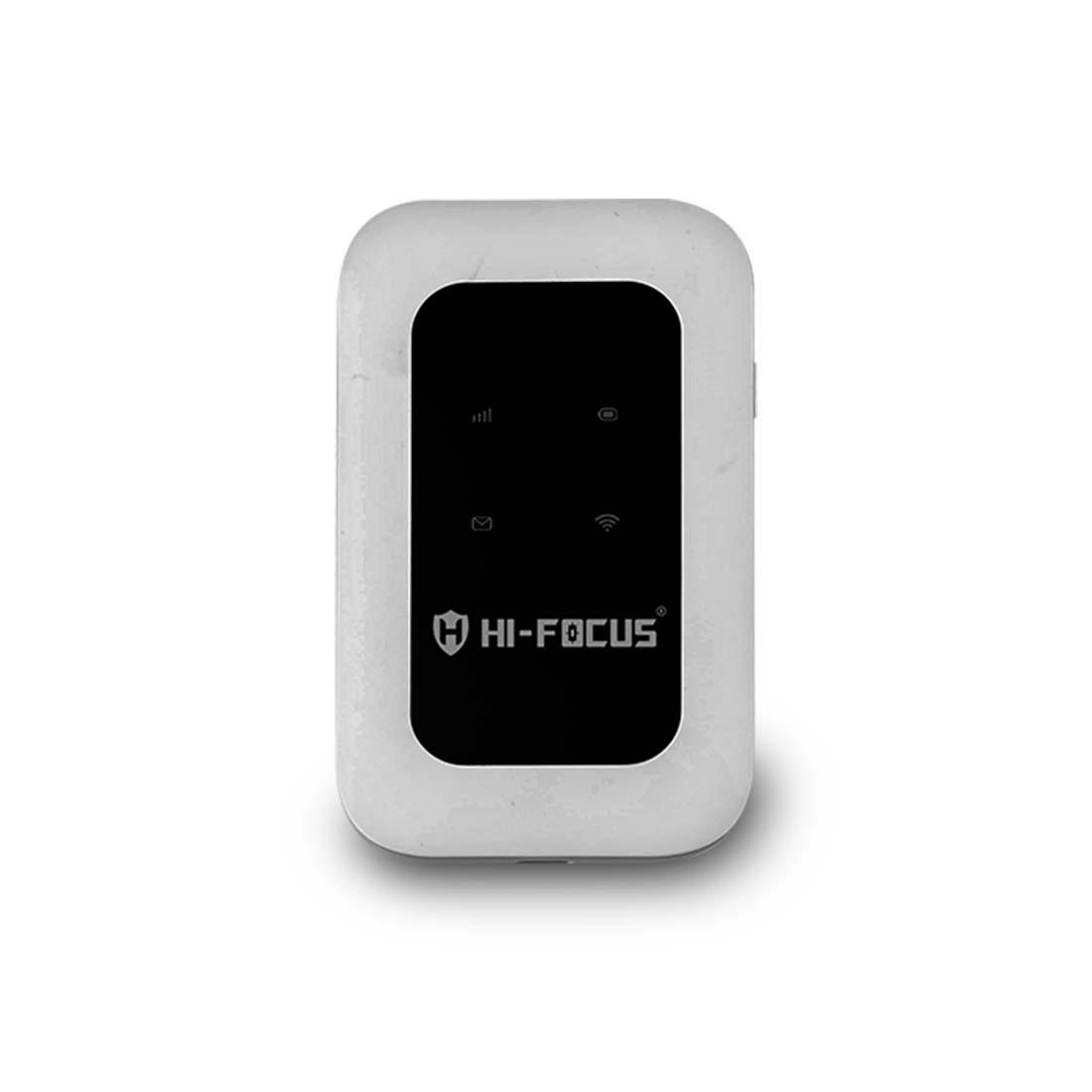

4G WIRELESS ROUTER PLUG & ONLINE

HF-BT001-DG

Product Features

LTE CAT4
2.4GHz 1*1MIMO Up to 72.2Mbps
LED Indicator
2100mAh removable battery

Specifications

LTE WAN Feature
WLAN Feature
Hardware Parameter

LTE WAN Feature

Frequency Bands

FDD-LTE B1/B3/B5/B7/B8/B20/B28 TDD-LTE B38/B40/B41; WCDMA B1/B5/B8;

Bandwidth

LTE Band: 1.4/3/5/10/15/20 MHz, comply with 3GPP

Modulation

DL: QPSK/16-QAM/64-QAM, comply with 3GPP UL: QPSK/16-QAM, comply with 3GPP

LTE Antenna

Primary and Diversity 2*2 MIMO, Internal

RF Level

LTE-FDD: Power Class 3 (23 dBm + 2.7/-3.7dB) LTE-TDD: Power Class 3 (23 dBm + 2.7/-3.7dB) UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)

Data Rate

4G: 3GPP R9 Cat4, DL/UL up to 150Mbps/50Mbps 3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps

WLAN Feature

WiFi Standard

802.11b/g/n, 2.4GHz, 20MHz Auto or select channel from 1 to 13

Antenna

1x1, Internal

Connection

Support Max users 10

WiFi Data Rate

802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 72.2 Mbps

Hardware Parameter

Dimension

98.5*59.3*14.9 mm(L×W×H)

Net weight

83.5g

Working Temp

-20°C to 45°C

Storing temp

-20°C to 60°C

Power adapter

5V/1A

Battery Capacity

2100 mAh (Default), Li-on Battery

Display

LED Indicator

Key/Interface

POWER/RESET,Micro-USB ESIM

SIM Interface

EUICC, USIM Micro-SIM (3FF)
