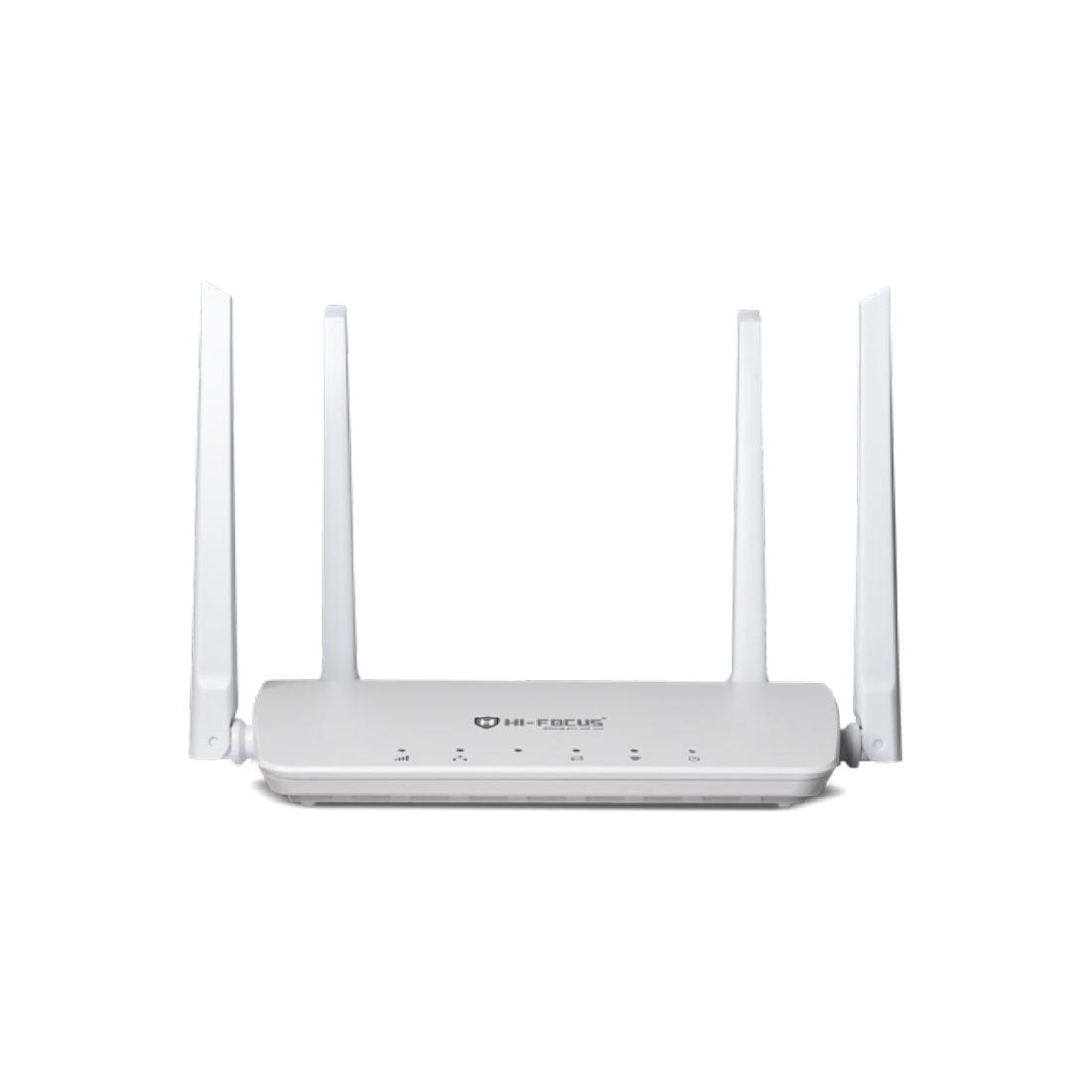

WIFI 6 LTE ROUTER
HF-R1104T-4G-W6
Product Features
- LTE external antennas & WiFi external antennas
- Support Firewall: Port Filtering/ Port Mapping/ Port Forwarding, UPnP, DMZ
- Usage scenario: Indoor, Home, office, etc
Specifications
- General
- LTE WAN Feature
- Hardware Parameter
General
Interfaces
LAN: 1*RJ65 with 10/100Mbps
USIM
Single, Standard SIM slot 6FF
System
Connection Status/Statistics/ Device Management
Language
English
Mobile Service
• SMS Manager • Auto-APN according to USIM • Auto Data Connection • PIN/PUK Management • Network Mode Selection(LTE)
Router
• Support SSID, APN management,lPv6 • DHCP Sewer, Dynamic IP, Static IP • Access Control, Local Management • Support OPEN, WPA-PSK/WPA2-PSK • Firewall • PORT Filtering
Operating System
• Windows 7/8/XP/10 • MAC OS 10.10+ • Andriod 10/11 • Linux Ubuntu 15.06+ • Browser Edge, Firefox, Google Chrome, Safari, Opera
LTE WAN Feature
Frequency Bands
• FDD LTE: B1/B3/B5/B8 • TDD LTE: B38/B60/B61
Bandwidth
1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation
• DL: QPSK/16-QAM/64—QAM, comply with 3GPP • UL: QPSK/16-QAM, comply with 3GPP
LTE Antenna
4*ExternaI LTE Antennas
RF Power Level
• LTE: Power Class 3 (23 dBm + 2.7/-3dB)
Data Rate
4G: 3GPP R9 Cat4, FDD: DL/UL up to 150Mbps/50Mbps, TDD: DL/UL up to 110Mbps/10Mbps
Hardware Parameter
Dimension
150mmx105mmx30mm(LxWxH)
Net weight
About 17bg
Operating temp
-20 C +65°C
Power adapter
DC 12V,1A
Power supply
<12W
Interface
1FE+U-SiM+WiFi
Indicators
POWER, WiFi, LAN, LTE
Buttons
Reset/WPS
