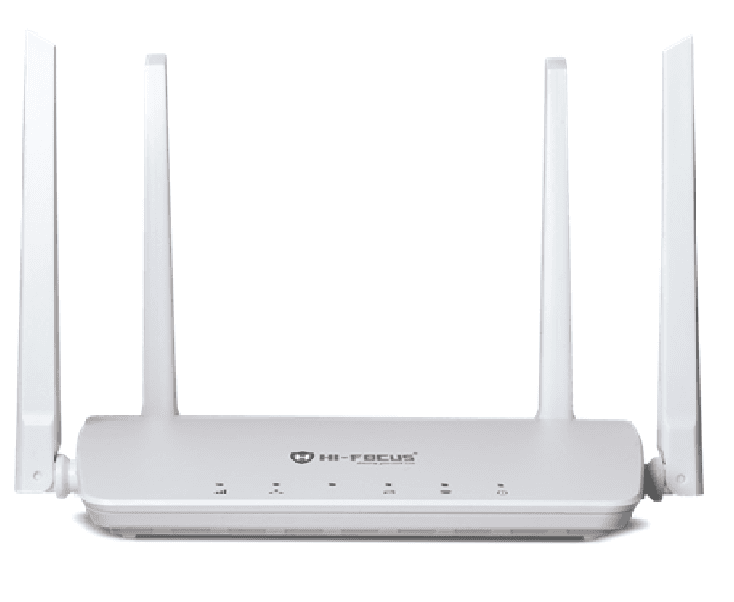

LTE 4G ROUTER
HF-R1404T-4G
Product Features
- LTE external antennas & WiFi external antennas
- Support Firewall: PORT Filtering/ Port Mapping/ Port Forwarding, UPnP, DMZ
- Usage scenario: Indoor, Home, office, etc.
- Long Range coverage
Specifications
- General
- LTE WAN Feature
- WLAN Feature
- Hardware Parameter
General
Interfaces
LAN: lxRJ45 with 10/100Mbps
USIM
Single, Standard SIM slot 4FF
Web UI
System:Connection Status/Statistics/Device Management/Power Mangement Language : English
Router
• Support SSID • APN management • Access Control, Local Management
Security
• Support WPA2(AES)-PSK/, WPA- PSK/WPA2-PSK encryptions • Support Firewall • VPN Pass through contains IPSecVPN,PPTP VPN, L2TP VPN • PORT Filtering/ Port Mapping/ Port Forwarding • UPnP, DMZ
Operating
Windows 7/8/XP/10 • MAC OS 10.10+ • Andriod 10/11 • Linux Ubuntu 15.04+ • Browser IE9+, Firefox, Google Chrome, Safari, Opera
LTE WAN Feature
Chipset
ASR1803L (512Mbit+128Mbit)
Frequency Bands
XMC1843e-CA: FDD-LTE: Bl/B3/B5/B8; TDD-LTE: B38/B40/B41
Bandwidth
1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation
• DL: QPSWI 6-QAM/64-QAM, comply with 3GPP • UL: QPSW16-QAM, comply with 3GPP
RF Power
• LTE: Power Class 3 (23 dBm + 2.7/-3.7dB) • UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)
Rate
4G: 3GPP R9 Cat4, FDD: DL/UL up to 150Mbps/50Mbps, TDD: DL/UL up to 110Mbps/10Mbps 3G: 3GPP R7 DUUL up to 21Mbps/5.76Mbps
WLAN Feature
Wi-Fi Frequency
2.4GHz, 1-13Channel
Transmit Power
• 17±2dBm @ 802.11b • 15±2dBm @ 802.1 lg • 14±2dBm @ 802.1 In
Receiver input level sensitivity
< - 76dBm at the antenna port QPSK, 11Mbps, 1024 Byte PSDU @ 802.11b < -65dBm at the antenna port, 64QAM, 54Mbps, 1024 Byte PSDU @ 802.11g • -64dBm at the antenna 64QAM, 65Mbps, 4096 Byte PSDU 802.1 In(HT20)
WiFi Antenna
External Antenna
Protocol
802.11 b/g/n
Data Rate
• 802.11b:Up to 11 Mbps • 802.1 lg: Up to 54 Mbps. • 802.1 In: Up to 150 Mbps
Hardware Parameter
Dimension
150mmx105mmx30mm(LxWxH)
Net weight
230g
Operating condition
Operating temp: -20°C ~ +45 C
Storing condition
Storing temp - 20°C ” +60°C
Power adapter
DC 12V, 1A
Power supply
<12W
Interface
1FE+USIM+WiFi
Indicators
POWER, WiFi, LAN, LTE
Buttons
Reset/WPS
