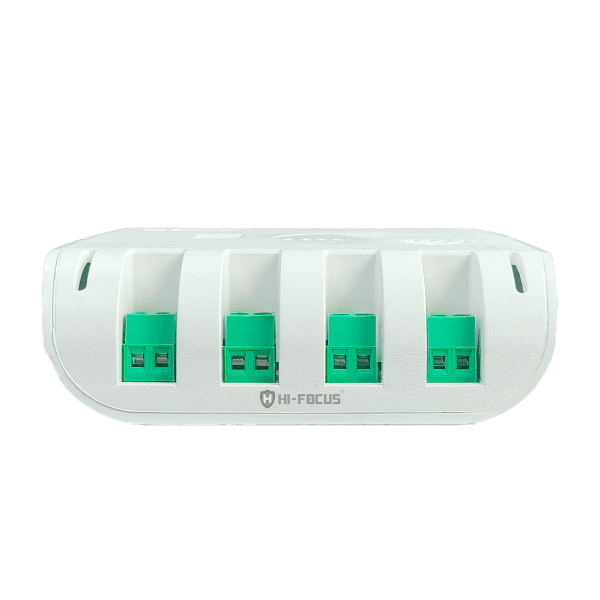

4 CHANNEL SMPS
HF-PSF104
Product Features
- (CCTV Power Supply) Comes with Individual output and resettable fuse. It ensures safe installation and delivers 1A current (Max) via each port.
- Protections: It Includes Various Protections such as Overload, overvoltage, Over Current, Short Circuit, and Over Temperature Protection.
- Voltage Adjustment Switch: It is useful to compensate voltage loss at camera end (12-15V DC).
- Aesthetic: Unique and attractive with Ventilation for heat dissipation.
- Strong and Durable: Made from High grade ABS plastic.
- Led Indicator: Led indicator for each channel shows the functional status.
Specifications
- Product Specifications
Product Specifications
AC Input Voltage
150~265VAC
DC Output Voltage
12~15VDC
Rated Power
52.5W
Ripple & Noise (max.)
96mV (max)
Voltage Adj. Range
12-15V
Device
Primary-Side Regulation
Device(frequency)
132KHz
VDS Voltage
550V (max)
Line Regulations
±1%
Load Regulations
±5%
SCP
Output short-circuit protection
OPP, OCP
Output overload/over-current protection
OVP
Output overvoltage protection, auto-restart or latching
line UV
Line brown-in/out protection
OV
Line overvoltage shutdown extends line surge withstand
OTP
Accurate thermal shutdown, hysteretic or latching
Efficiency(Typ.)
84%
Frequency Range
47-63HZ
Storage Temperature
0-50°C
