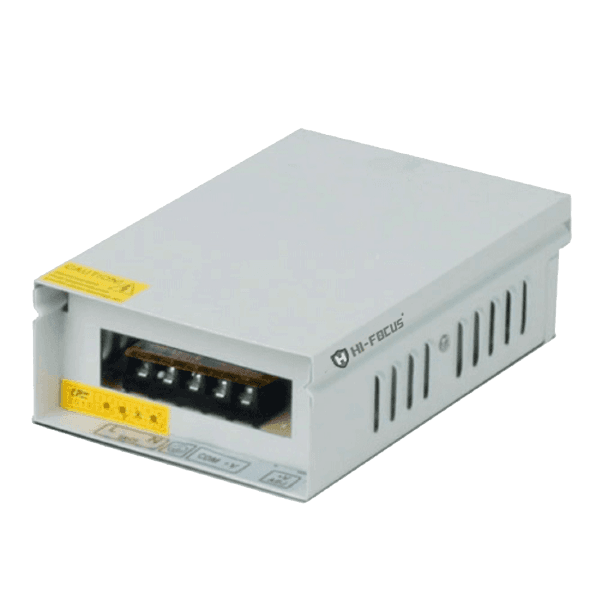

Power Supply (10A)
HF-PSF1210H
Product Features
- Wide range of Input voltage 190V~250V AC
- Add more cameras with higher power budget 12V, 10A
- Built-in EMI filter to nullify interference
- Voltage regulator switch for voltage adjustment
- Protections: Overload / Over Voltage / Short Circuit
- Metal Housing for uniform/quick heat dissipation
Specifications
- Product Specifications
Product Specifications
Input voltage
180~264VAC
Output voltage
12V DC
Current Range
0~10A
Rated Power
120W
Ripple & Noise (max.)
100mVp-p
Voltage Adj. Range
11.4~13.2V
Line Regulation
±1.0%
Voltage Tolerance
±2.0%
Setup Rise time
600ms, 30ms at full load
Hold Up Time (Typ.)
13ms at full load
Load Regulation
±5.0%
Temperature coefficient
±0.03%/°C (0~50°C)
Frequency Range
47~63HZ
Efficiency (Typ.)
84%
AC Current (Typ.)
5A/115VAC 3A/230VAC
Inrush Current (Typ.)
20A/115VAC 40A/230VAC
Leakage Current
<2mA / 240VAC
Over Load
110~200% rated output power, Protection type: Shut down O/P, re-power on to recover
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH
Working Humidity
20~90% RH Non-condensing
Vibration
10 ~ 500Hz, 3G 10min./1 cycle, 60min.each along X, Y, Z axes
Dimension
187(L) x 103(W) x 52mm(H)
Store temperature
-20~+85°C, 10~95%RH
Working temperature
-20~+40°C
Withstand Voltage
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
