How to Choose the Best CPE Point-to-Point Device for Your ISP or CCTV Setup (2025 Guide)

Setting up a strong point-to-point (PTP) wireless link is one of the most important steps in building a reliable ISP network or CCTV surveillance system. The core of this setup is the CPE (Customer Premises Equipment) a device designed to send and receive wireless signals over long distances. A well-chosen CPE ensures smooth video streaming, stable bandwidth, and consistent performance in all weather conditions.
However, with many brands and models available today, choosing the right device becomes confusing. This guide simplifies the process so you can confidently select a CPE that suits your exact needs.

What Is a CPE Point-to-Point Device?

A CPE PTP device connects two distant locations wirelessly, working like a network bridge. It is commonly used when laying fiber or LAN cable is too expensive or physically impossible.
People use CPE devices for linking buildings, extending internet coverage, establishing home-to-office connectivity, connecting remote CCTV cameras, or distributing bandwidth across ISP towers.

In simple terms, a CPE allows you to transfer high-speed data from Point A to Point B without physical cabling.

Why Choosing the Right CPE Matters

Picking the correct CPE is important because it directly affects the stability and performance of your network. A weak or incompatible device can create problems like slow connections, pixelated CCTV footage, poor long-range coverage, or frequent signal drops.
On the other hand, a well-suited CPE ensures smooth streaming, high throughput, and consistent wireless performance.

A good CPE gives you benefits such as stable signal strength, uninterrupted data transfer, better long-distance coverage, and reliable outdoor performance even in rain, heat, or dust.

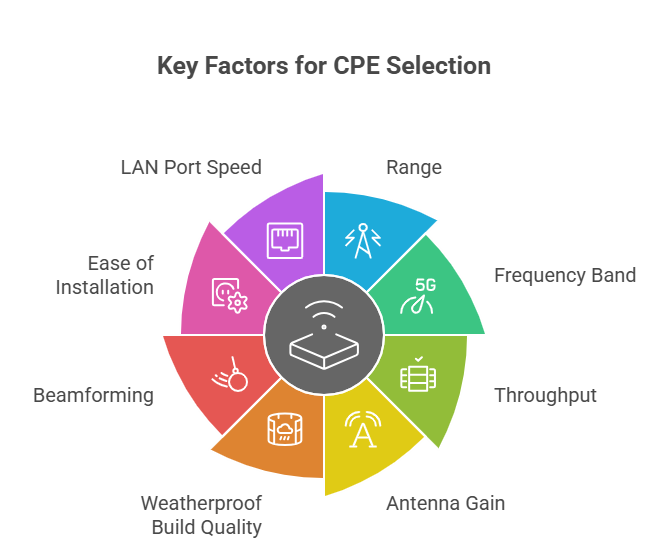

Key Factors to Consider Before Choosing a CPE

Below are the essential points you must understand before finalizing a CPE device. Each factor influences the signal performance and long-term stability of your wireless link.

Range (Distance Coverage)

The range is the first and most important thing you should evaluate. Your required distance will determine the type of CPE you need.
Short-range use cases like connecting a CCTV camera at a nearby building may work with basic CPEs. Medium-range distances require stronger antennas, while ISPs handling long-range network distribution need advanced devices with higher power.

Understanding the distance between both points helps you avoid underpowered devices that struggle to maintain connectivity.

Frequency Band (2.4GHz vs 5GHz)

The frequency band determines the speed and stability of your wireless link.
Most professional installations prefer 5 GHz because it offers significantly better performance, especially for long-distance point-to-point links. Compared to 2.4 GHz, the 5 GHz band provides faster speeds, reduced interference, and more stable signal strength.

For CCTV streaming and ISP distribution, 5 GHz is the ideal and recommended choice because it ensures uninterrupted data flow.

Throughput or Speed Capacity

Throughput refers to the maximum data speed the CPE can handle. This is crucial because your CPE should match or exceed your bandwidth needs.
For small CCTV setups, moderate throughput is sufficient, but larger installations such as 8-camera systems or ISP towers require higher data capacity.
Choosing a CPE with 30–50% extra throughput ensures your network remains stable even during heavy data load.

Antenna Gain (dBi)

Antenna gain directly impacts signal strength and distance coverage. Higher gain antennas send signals further and maintain better performance in long-range environments.
Short-distance connections may not need high gain, but medium- and long-range links require CPEs with stronger directional antennas to maintain stable performance.

Understanding your distance requirement will help you match the appropriate antenna strength to your setup.

Weatherproof Build Quality

Since CPEs are installed outdoors, durability matters. They need to withstand harsh environmental conditions, including rain, heat, humidity, and dust.
Weatherproof ratings such as IP65 or higher, UV-resistant enclosures, and built-in surge protection ensure long device life. A strong enclosure also helps maintain consistent performance, especially in regions with unpredictable weather.

A device with solid build quality reduces maintenance and replacement costs.

Beamforming and Directional Technology

Modern CPEs use advanced features such as beamforming, which focuses the wireless signal toward the receiving device.
This improves long-range performance, reduces signal loss, and increases overall stability. Beamforming is especially important in crowded areas where interference from other wireless devices can degrade signal quality.

For CCTV and ISP applications, beamforming greatly boosts reliability.

Ease of Installation and Setup

Not everyone is a networking expert, and ease of installation makes a huge difference.
Beginner-friendly CPEs offer app-based setup, auto alignment support, simple user interfaces, and easy Master–Station pairing.
If you're setting up the link yourself, choosing a device with simple configuration tools will save time and reduce errors.

Easy installation also means troubleshooting becomes faster in the future.

LAN Port Speed

Many users overlook this, but LAN port speed can bottleneck your connection.
Even if a CPE supports high wireless speeds, a 100 Mbps LAN port will limit actual output. For high-speed ISP distribution or heavy CCTV footage transfer, a Gigabit LAN port (1000 Mbps) is essential to maintain full performance.

Matching wireless capability with port capability ensures maximum efficiency.

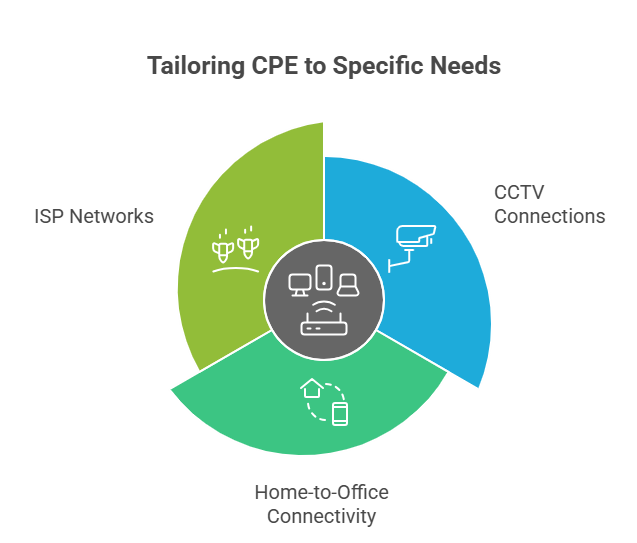

Choosing the Perfect CPE for Your Exact Requirement

Since different setups require different strengths, you should match the CPE to your real-world usage.
For CCTV connections over short distances, a simple 5 GHz device with decent antenna gain works well. For home-to-office connectivity, a medium-range, Gigabit-enabled CPE is more suitable.
ISP networks need higher throughput devices with advanced beamforming, strong antennas, and excellent long-distance capability.

By understanding your exact use case distance, speed needs, and environment you can avoid buying devices that are either underpowered or unnecessarily expensive.

Common Mistakes Users Should Avoid

Users often face performance issues because of incorrect device selection or improper installation.
Some people try using 2.4 GHz for long ranges, which leads to unstable performance. Others buy devices with low antenna gain for long-distance links, causing constant dropouts.
Mixing brands between both ends of the link is another common mistake that reduces compatibility and performance.

To avoid problems, use proper line-of-sight alignment, shielded cables, surge protection, and the same brand for both ends.

How to Get Maximum Performance From Your CPE

Even the best CPE can underperform if not installed correctly.
Mounting the device at a higher position improves signal quality. Maintaining clear line-of-sight is essential for long-range stability. Shielded CAT6 cables and proper grounding protect the device from interference and electrical issues.
Additionally, manually locking the frequency, avoiding auto-channel modes, and fine-tuning device alignment significantly enhance overall performance.

Following these steps ensures consistent signal strength and long-term reliability.

Conclusion

Choosing the best CPE for your ISP or CCTV setup is all about understanding your distance requirements, speed needs, and environmental conditions. Smaller CCTV installations may work well with economical CPEs, while long-distance ISP links demand more advanced, high-throughput devices.
With the right selection and proper installation, your wireless link will perform smoothly, deliver stable bandwidth, and operate reliably for years.

FAQ – Best CPE Point-to-Point Device

1. Do I need two CPE devices for a point-to-point link?

Yes, you need one CPE at each end one as Master and one as Station.

2. Is 5 GHz the best option for PTP links?

Yes, 5 GHz offers better speed, range, and stability compared to 2.4 GHz.

3. Can a CPE work without internet?

Yes. It works as a wireless bridge, even without an internet connection.

4. How far can a CPE transmit?

Depending on the model and environment, it can cover anywhere from 1 km to 20+ km.

5. Can I use different brands at both ends?

It’s possible, but not recommended. Using the same brand ensures better performance.

6. What LAN port speed should I choose?

A Gigabit LAN port is recommended for high-speed ISP links or heavy CCTV streaming.
